Technical Specifications

Tractor ModelTRX 7800
EngineKUBOTA
Number of Cylinders4
Power89 hp / 65.1 kW
InjectionDirect
CoolingWater-Cooled
TurbochargedYes
TransmissionSynchronized gearbox with reverse, 32 speeds: 16 forward/16 backward
PTO540/540e/synchronized
Hydraulic System1 pump, 40.5 L/min
Lifting Capacity2600 kg (at the ends)
Hitch Category1-2
DimensionsWidth with standard wheels: Front 280/85R20, Rear 320/85 R24. Width: 1,395 – 1,715 mm, Height with cabin: 2,325 mm, Length: 3,540 mm
Weight with Cabin2280 kg (without ballasts and options)

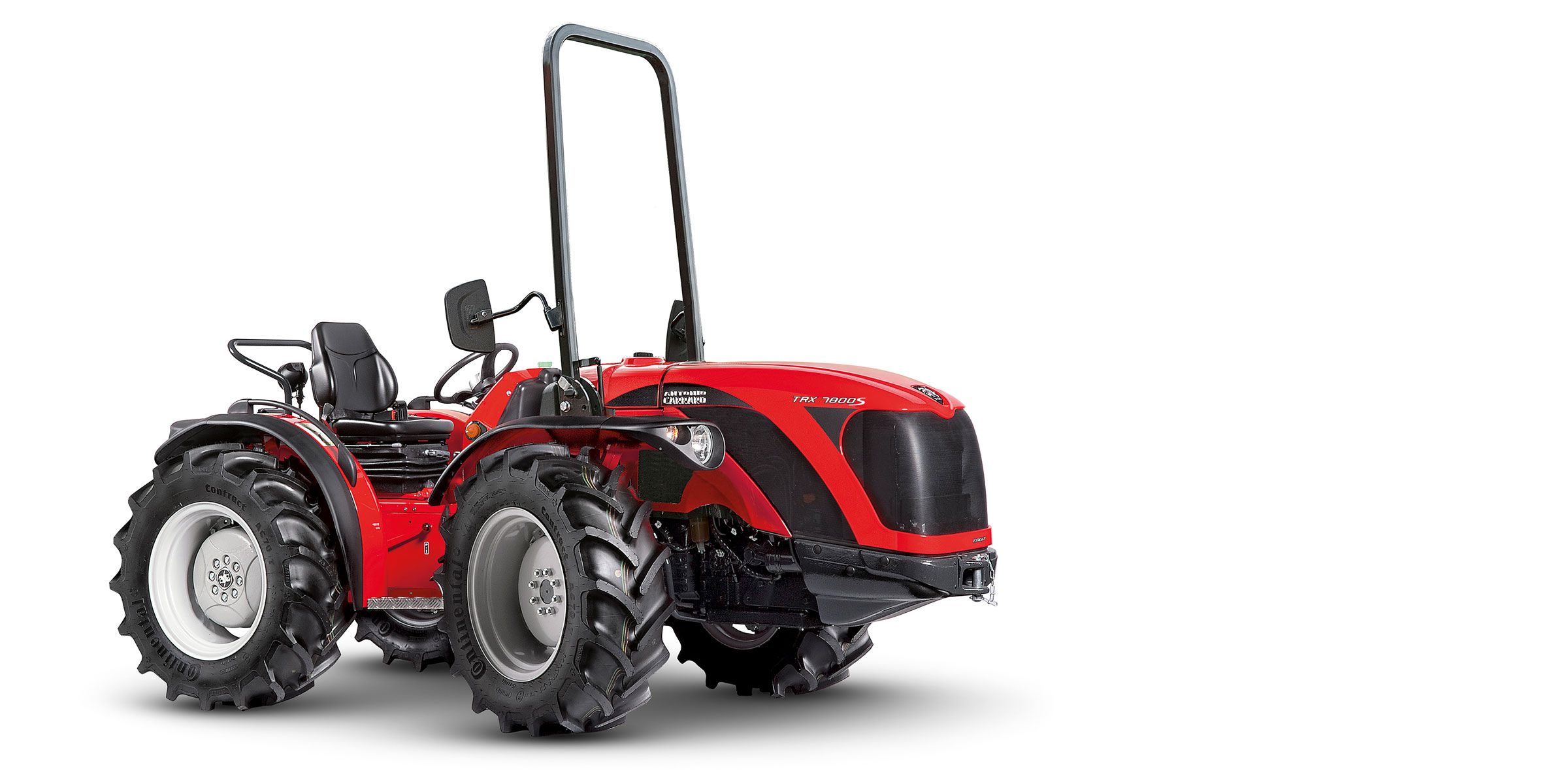

Description of Carraro TRX 7800

The TRG series tractors ALWAYS feature the patented "ACTIO" chassis: Consistent all-wheel drive and contact with the ground. Copying the unevenness, holes, and hilliness with the front and rear axles, thanks to the independent travel of the front and rear axles relative to the longitudinal axis of the tractor.

The distribution of total weight to the front and rear axles of the tractor is in the following proportions: without mounted equipment: 60/40% and with mounted equipment: 50/50%. The tractor's minimal turning radius equals higher efficiency in the same amount of time. When working on steep slopes, you feel safe without the fear of tipping over.

RGS™ Rev-GuideSystem: In less than a minute, you can rotate the seat, steering wheel with instrument panel, and pedals by 180 degrees. The three-point hitch with PTO and all hydraulic outputs are right in front of you, significantly expanding and improving the tractor's functionality and work convenience.

Tractor with StarLight Cabin

  • Passive Safety System ROPS
  • Heating System (from the engine)
  • Ventilation with Dust Filter
  • Air Conditioning with Internal Air Recirculation
  • Cabin Lighting
  • Audio Preparation
  • Rear Window with Gas Struts
  • Front Opening Window
  • Front and Rear Windscreen Wipers with Washers
  • Side Rearview Mirrors
  • Doors with Locks on Gas Struts
  • Additional Upper Front and Rear Spotlights
  • Platform for Installing a Flashing Beacon
  • Soundproofing
  • Tinted Tempered Glass with UV Filters

Equipment

  • Cabin (heater + AC), soundproofing, opening windshields, rear window with double opening, panoramic roof with sunshades, audio preparation.
  • Hydraulic system with 2 double-acting distributors, 1 oil return (BRS 4+1).
  • Rear 3-point hitch with claw hitch
  • Pair of 35kg weights each for rear wheels.
  • Side weights by the hood (2+2 totaling 88 kg).
  • Kangaroo Bar
  • Hitch with adjustable height on runners
  • GRAMMER(TOP) seat with backrest adjustments, lumbar support, and pneumatic weight adjustment.
  • Wheels: 300/80-15.3 (front) and 360/70R20 (rear, adjustable).
